CARGO

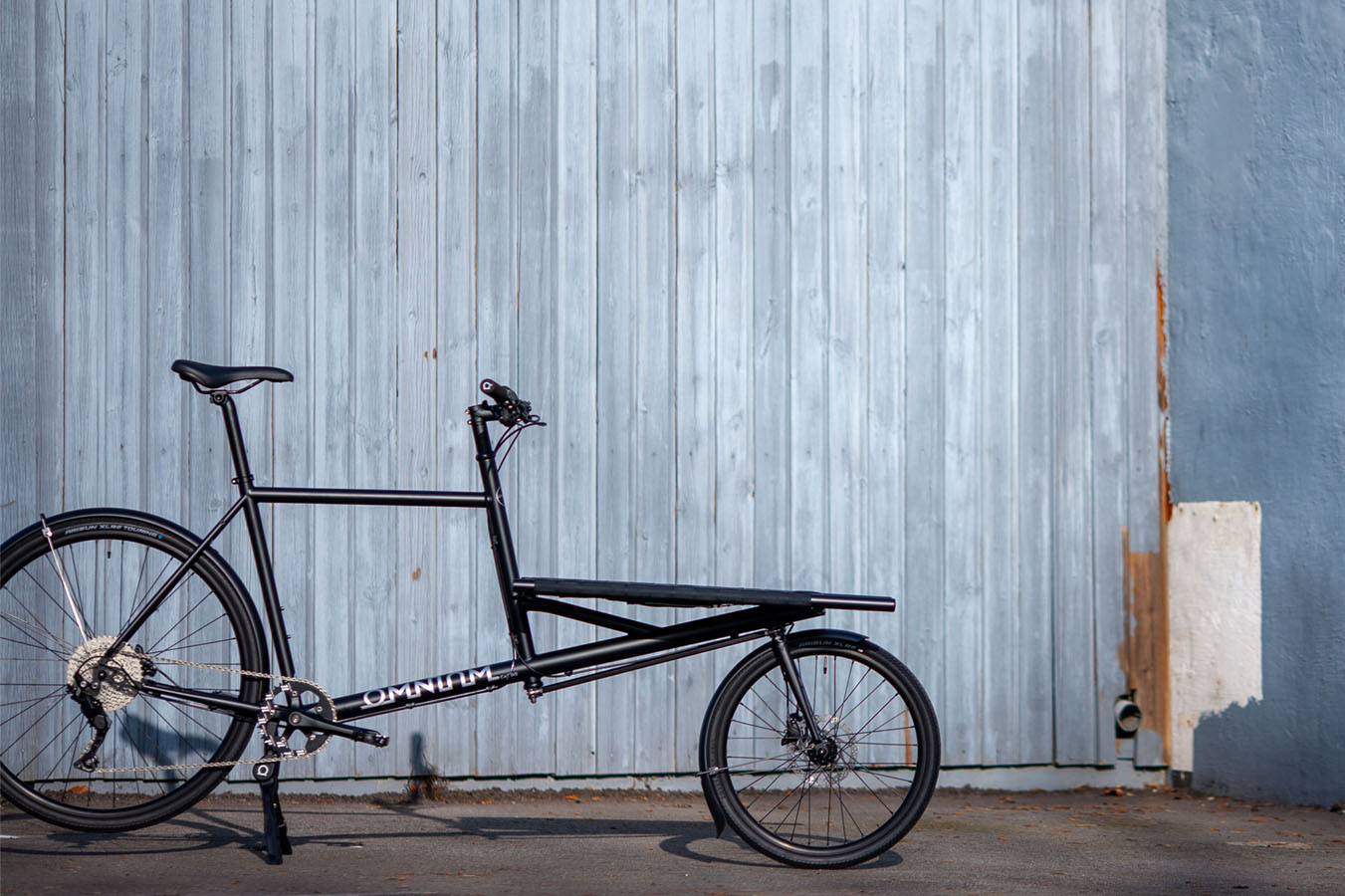

The OMNIUM Cargo is the fast, light, adjustable and manoeuvrable cargo bike. The rack area can be adapted for cargos of all kinds and for various types of child seat including our new official child safety seat. Add our nylon cargo webbing to provide a super-strong surface that can hold crazy loads all day long. We also have a cunning extender bar that slides trombone-like into the rack to give you absurd levels of cargo power.
Unlike some other cargo bikes on the market, ours feel pretty much exactly like a normal bike to ride. Not twitchy, not shaky, but agile and speedy. You’ll adapt in minutes and wonder how you survived without OMNIUM in your life.
We offer complete bikes, fully assembled and ready to ride from our dealers – or order from our webshop and have your bike delivered WORLDWIDE with only minor assembly tasks left. We also offer frame-sets too so you can build your dream OMNIUM.
Are you in doubt about which of our cargo bikes fits you best? Have a look at our new page “Which Bike Fits Me?”.
EUROPEAN FUNDING SCHEMES
Check to see if you are eligible for one of 300 tax-incentive and purchase-premium schemes across europe. Find out more here
ALL
TYPES
Cargo V3
The Cargo V3 everybody! The same fast and light OMNIUM as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.
Cargo V3 Belt Drive
The OMNIUM Cargo Belt Drive is a variation of our Cargo V3 bike with Gates Carbon Drive and internal gears. The Gates Carbon Drive is an alternative to the classic metal chain that bikes have had for more than 100 years. The drivebelt technology comes from the motorcycle world and is essentially zero-maintenance and requires no lubrication.
E-Cargo V3
The OMNIUM E-Cargo features an integrated Shimano STEPS EP8 power unit, supporting speeds up to 25km/h. Go the extra distance and still break a sweat!
Cargo Titanium
The true workhorse of the fleet, the Ti Cargo comes with internal cable along the entire downtube, Rocker dropouts, and 55mm WiFi clearance!
Family+Omnium
Do you own a small human, but would still like to live the OMNIUM life? Our Official Yepp child seat bracket allows you to do so, while keeping the face to face chit chat going throughout the ride. With their back to the wind and the appropriate attire, it’s all smiles for everyone! There’s even room for extra cargo with the addition of an Extender bar, webbing, and a basket!
Size & Geometry Guide
Height
< 160 cm
160 – 175 cm
175 – 185 cm
185 – 195 cm
> 195 cm
Recommended Size
Extra Small
Small
Medium
Large
X-Large
Geometry
PAINT CHOICES
This list represents our current paint selection. It does not account for availability. Please check the respective product page for that. For incoming, new colors please relate to our future stock page.
COMPONENT LISTS
| Brakes | SRAM Guide RE 4 piston IS 160mm front and rear |
| Gears | Shimano Nexus 5 internal gear hub, Gates 125T CDX carbon drive belt, Gates 28T rear sprocket. |
| Stem | 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black |
| Handlebar | 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black |
| Seatpost | 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black |
| Grips | Omnium lock-on, black, foam |
| Crankset | Shimano Steps FC-EM600 165mm crank arm with Gates 39T 104bcd chainring |
| Headset/s | VP Components, sealed bearings |
| Saddle | Omnium Standard Saddle |
| Tyres | Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″) |
| Wheels | Nexus inter-5e 135 x 10mm QR 622 (700c) rear wheel & 15 x 100mm thru axle 406 (20″) front, 38mm wide rims |
| Kickstand | Omnium, cast aluminium twin-leg |
| Pedals | Cast metal platform, black |
| Mudguards | WiFi 60mm wide matte black |
| Motor | Shimano Steps EP8-CRG |
FRAME SPECIFICATIONS
| Frame material | Double-Butted Chromoly Steel Frame |
| 5 Sizes | XS, S, M, L, XL |
| Seat post diameter | 31.6 mm |
| Seat post clamp size | 34.0 mm |
| Rear Wheel | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel | 406, 15 x 100 mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Bottom Bracket | BSA 68mm |
| Q-Factor/Stance | 145mm |
| Gears | For 1x rear derailleur gear system |
| Standard Rack Weight | 1320g +/- |
| Rack dimensions | 83cm × 50cm |
| Rack bolt size | M15 x 15mm |
| Weight | Complete Medium bike weighs 20kg |
| Maximum loading weight on front rack | 85 kg |
| Maximum total loading weight incl. rider | 175 kg |
ASSEMBLY GUide
Read our manuals on how to assemble an
OMNIUM Cargo bike by clicking on the covers below.
